This plank may look standard at first glance, but it’s factory hot-rodded and stage ready right out of the box. Country/roots-rock guitar legend and Grammy winning artist/producer Pete Anderson is well known for his vintage T guitar.
Pete Anderson worked together with Reverend to modernize it while keeping faithful to the original character. Modifications include: chambered body, stainless steel saddles, compound radius fretboard (10″ to 14″), “R” embossed knobs, and a push-pull studio switch in the tone control (turns on neck & bridge pickups together, allowing a total of 7 pickup combinations).
We design our own proprietary custom pickups, to achieve the best tonal match with our instruments. Reverend pickups are also specifically designed for each position, for balanced volume and tone when switching.
ROASTED MAPLE NECK
Roasted Maple is heat treated at over 300° F to remove sugars, moisture, and impurities. This maple is lighter, more stable, and has a beautiful caramel color. The result is an exceptional maple neck that will require less seasonal adjustment, and boasts a rich vintage look!
Korina (aka White Limba) is a medium-light weight wood, highly prized for consistency and tonal qualities. Often found in boutique and vintage instruments, all Reverends feature Korina bodies. A highly resonant wood, Korina is a key factor to producing our lively, responsive instruments that are rich in harmonics.
The Eastsider has three strategically placed chambers underneath the pickguard for all the increase in resonance and warmth that you’d expect. The placement of the cavities also reduces neck-diving balance issues found in most chambered guitars.

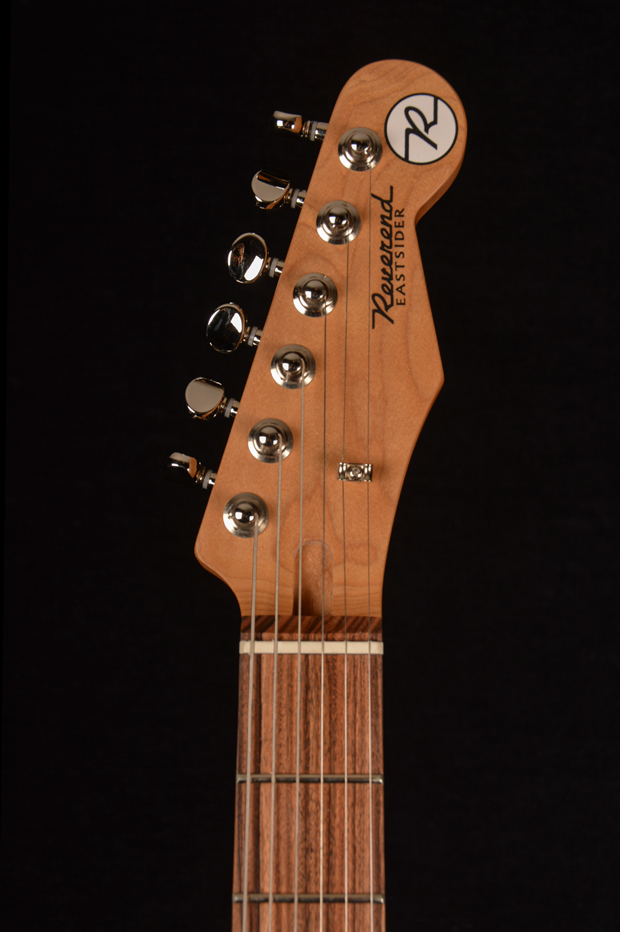

A thumbwheel under the tuner pushes a steel pin up through the post, locking the string in place for exceptional tuning stability and super-fast string changes.

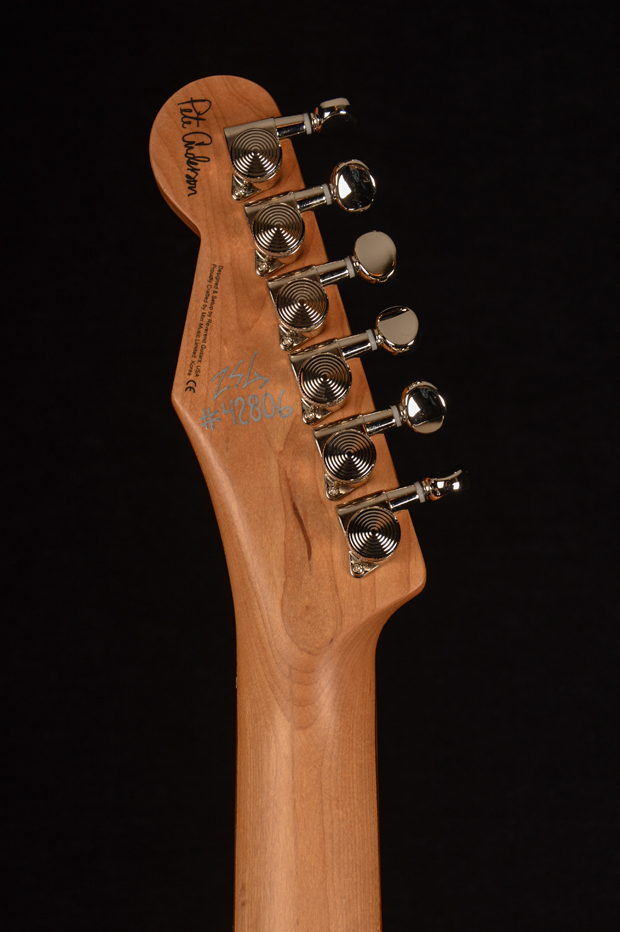

Every Reverend is hand initialed and serial numbered on the back of the headstock by one of our highly skilled technicians who sets up, inspects, and tests every instrument.
WILKINSON WVS50 IIK TREMOLO
Features include saddles that lock to the baseplate, adjustable arm swing tension, and a push-in/no freeplay arm. Combined with our boneite nut and pin-lock tuners, it stays in tune even under aggressive whammy action.
VARI-CLAW TREMOLO CLAW
This innovative claw gives you the option of 3 springs in the middle for a firm tremolo feel, or 2 springs on the outside for a softer feel. The offset hook design lets you switch between 3 or 2 springs, with little or no cumbersome adjustment of the claw needed.
CUSTOM EMBOSSED KNOBS
All Pete Anderson models have special knobs which feature an embossed “R”. Custom cool!
We use “Boneite,” a synthetic bone nut, that is more consistent than natural bone, on all Reverend instruments. It reduces friction, allowing the strings to slide through the nut slots smoothly, improving tuning stability.
DUAL-ACTION TRUSS ROD
Our dual action rod adjusts in both directions, allowing back bow or forward bow. This assures correct adjustment range is possible regardless of string tension, extreme climate conditions, or the effects of long term aging. It’s also located at the headstock for easy access.

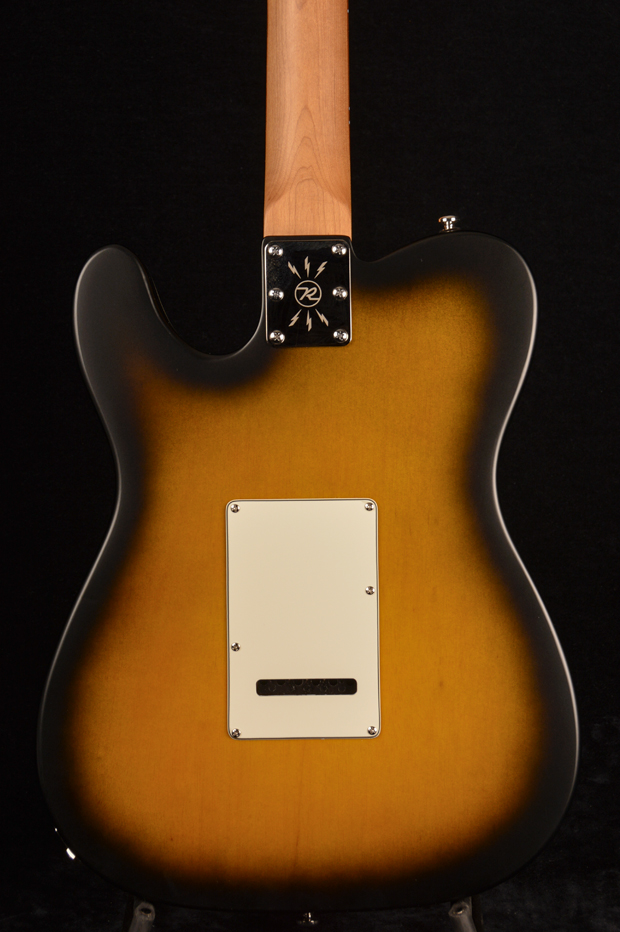

SIX-BOLT NECK PLATE
Two extra bolts increase mounting pressure of the neck by fifty percent. This makes a stronger neck connection, which improves sustain, tuning stability, and neck alignment.
PURE TONE JACK
All Reverends use an upgraded jack by Pure Tone Technologies. A standard jack has single contacts, but the Pure Tone jack has dual contacts for improved grip, audio signal and reliability. The most dependable guitar jack available.
TREBLE BLEED CIRCUIT
All Reverend guitars have a treble bleed circuit, preserving the treble when you roll back the volume control. When you roll back a standard volume control, the tone loses treble and becomes dull sounding. Now you can turn down and still sound great!
We use Alpha control pots with a +-10% rating. While a typical pot is +-20%, our pots are built to tighter specifications, making them more consistent. Typically used in expensive boutique guitars, but standard issue in all Reverends.
10% POLY CAPS
We use caps with a +-10% rating, while a typical cap is +-20%. Our caps are made to tighter specifications, so they’re more consistent. Made of polyester, they’re also longer lasting, and less affected by temperature than cheaper ceramic caps. Typically used in expensive boutique guitars.
BODY: Chambered Korina
PICKUPS: Talnico Bridge, Salnico Middle/Neck
BRIDGE: Wilkinson WVS50 IIK Tremolo
NECK: Roasted Maple
SCALE: 25 1/2″
NECK PROFILE: Medium Oval
FINGERBOARD: Pau Ferro or Roasted Maple 10-14″ Radius
FRETS: 22 – 0.110″W x 0.050″H
TRUSS ROD: Dual Action – Headstock Access
TUNERS: Reverend Pin-Lock
NUT: 43mm Width – Boneite
CONTROLS: Volume, Tone (Pull Neck+Bridge On) 5-way
