Ibanez ACFS580CE

Product Image

DKK 10995

Woodstock Guitars

FEATURES

T-bar under-saddle pickup
The Ibanez under-saddle pickup reduces noise and provides wide range of natural piezo-style sound. It also captures palm hits and delivers a bass drum-like response.

Block contact pickup
Since it’s placed on the neck block, the Ibanez contact pickup is resistant to feedback and evenly captures percussive sound from the body to the neck. It also adds air and brightness to the piezo-style sound by capturing acoustic tones from within the body.

Ibanez DP1 Preamp
The DP1 Preamp naturally amplifies the signal from the Dual Pickups. You can precisely blend the sound of both pickups using the simple control layout (Under-saddle pickup volume / Contact pickup volume), which reduces added holes in the body to maintain tonal integrity.

Dual outputs

  • Plugged into the endpin jack only: Under-saddle pickup + Contact pickup with mixed output
  • Endpin Jack : Under-saddle pickup Output
  • Open Jack : Contact Pickup Output

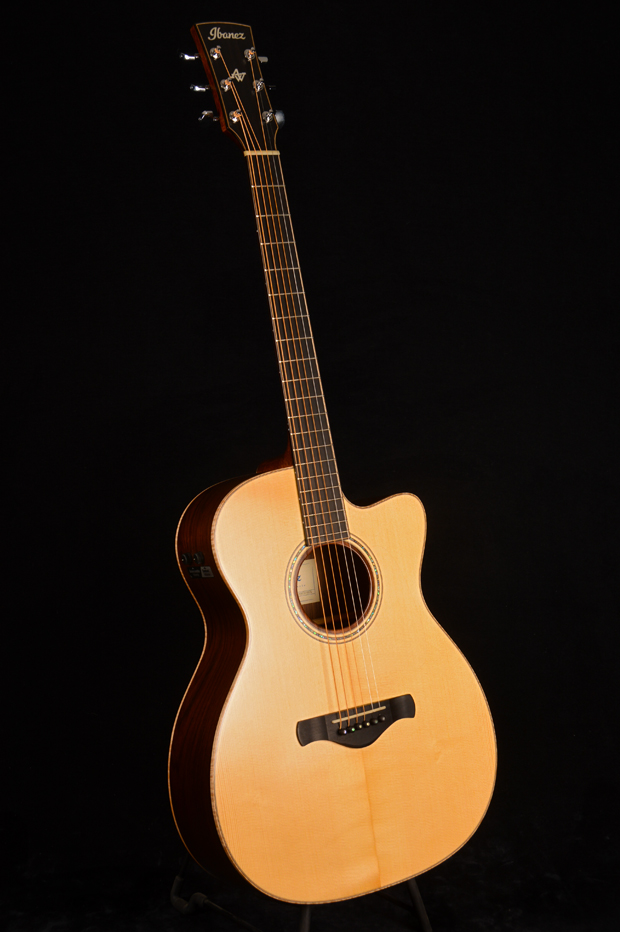

Deeper Grand Concert body
The body depth on the Grand Concert model is 10mm deeper-than-standard which affords rich lows and a vibrant strumming sound, despite its compact size.

Body wood & Bracing
Solid Alpine Spruce top and Solid Pau Ferro back & sides offer clear, sensitive tone and cover wide range of frequencies. Scalloped X bracing on the top provides responsive and balanced tone.

African Mahogany/Pau Ferro 5pc neck
5pc neck construction boasts increased stability for alternate tunings.

Deep Round Neck Heel
The deep, round neck heel construction makes playing more comfortable in the higher register.

Neck grip
The combination of a 45mm wide nut and thin C shape neck is ideal for the complex fretting and arpeggios of Fingerstyle.

Ebony fretboard and bridge
The Ebony fretboard and bridge offer tonal definition and a smooth playing action.

Unbleached Oil-impregnated Bone nut and saddle
The unbleached oil-impregnated nut and saddle deliver strong consistent string vibration and better tuning stability due to decreased friction resistance.

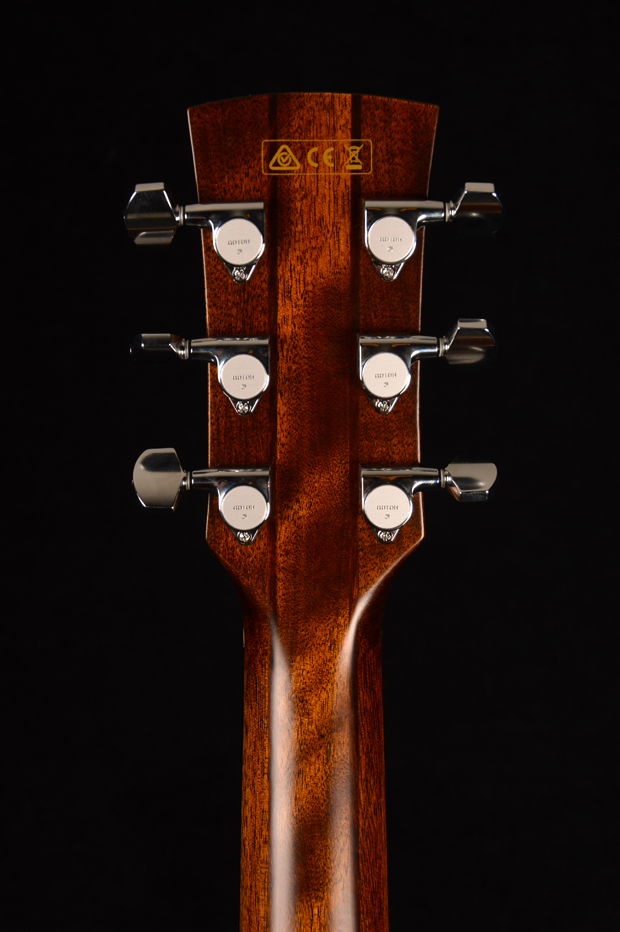

Gotoh® SG301 machine heads
The Gotoh® SG301 machine heads afford precise tuning using an 18:1 gear ratio.

Open Pore finish
The thinner open pore finish highlights the texture of the wood and emphasizes the acoustic and percussive tonal properties of the instrument.

Ibanez Advantage bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

SPECIFICATIONS

Body shape Cutaway Grand Concert body (Deeper body depth)
Top Selected Solid Alpine Spruce top
Back & sides Solid Pau Ferro back & Solid Pau Ferro sides
Neck Comfort GripAfrican Mahogany/Pau Ferro 5pc neck (Satin finish)
Fretboard Ebony fretboard
Body binding Flamed Maple body binding
Top board purfling wooden multi purfling
Soundhole rosette Abalone and Pau Ferro rosette
Tuning machine Gotoh® Chrome SG301 tuners (18:1 gear ratio)
Nut material Unbleached Oil-impregnated Bone
Number of frets 20
Saddle material Unbleached Oil-impregnated Compensated Bone
Bridge pins Ebony bridge pins w/Abalone dot
Strings Elixir® Phosphor Bronze with NANOWEB® Coating Light (.012-.053 Gauge)
String space 11mm
Pickup Ibanez T-bar undersaddle pickup & Block Contact Pickup
Preamp Ibanez DP1 preamp
Output jack 1/4″ Endpin Jack & 1/4″ output (Dual Outputs (Mono Out / Stereo Out))
Battery AAA Battery *2
Finish top Open Pore Semi-Gloss
Finish back and sides Open Pore Semi-Gloss
Finish neck back Satin

OTHERS

Hardshell case included
Round Neck Heel for easy access to high position
Ibanez Custom Electronics was developed with Shadow Electronics
